- Integrate different functional structures to reduce parts and achieve weight reduction.
- The TPRD has a high-temperature protection function.

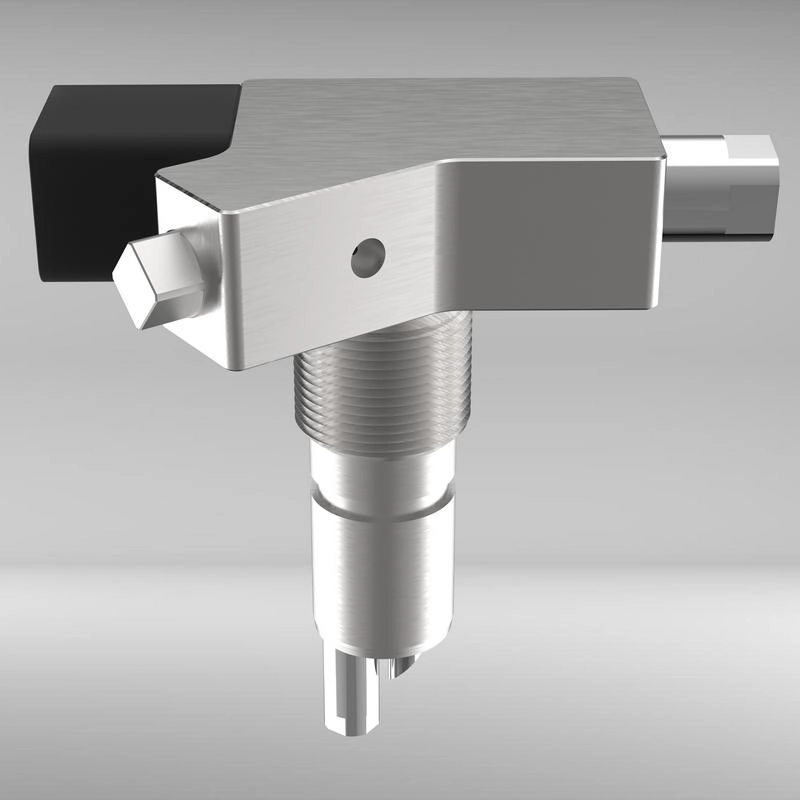

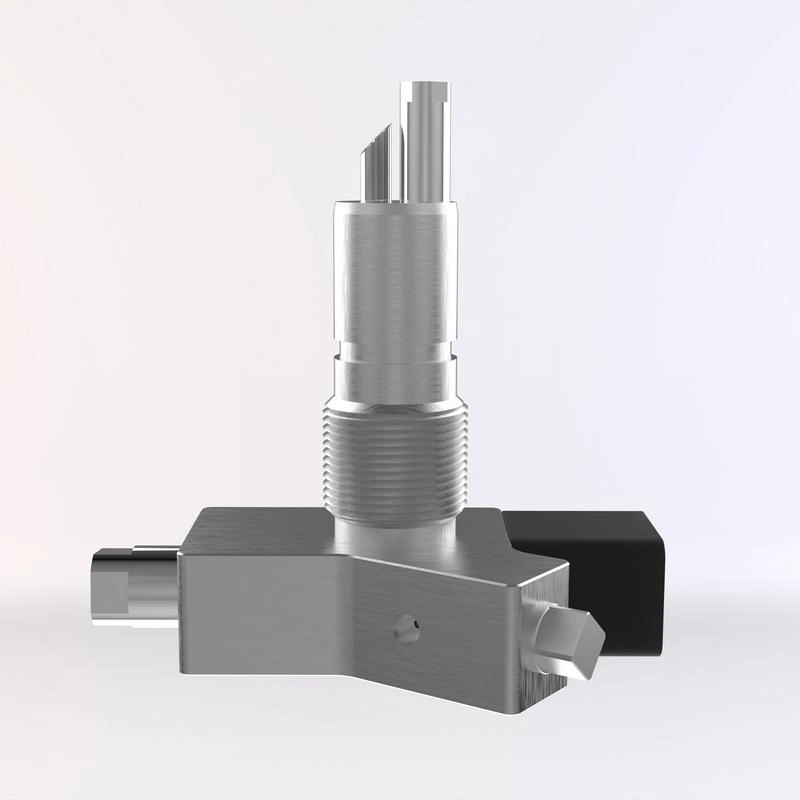

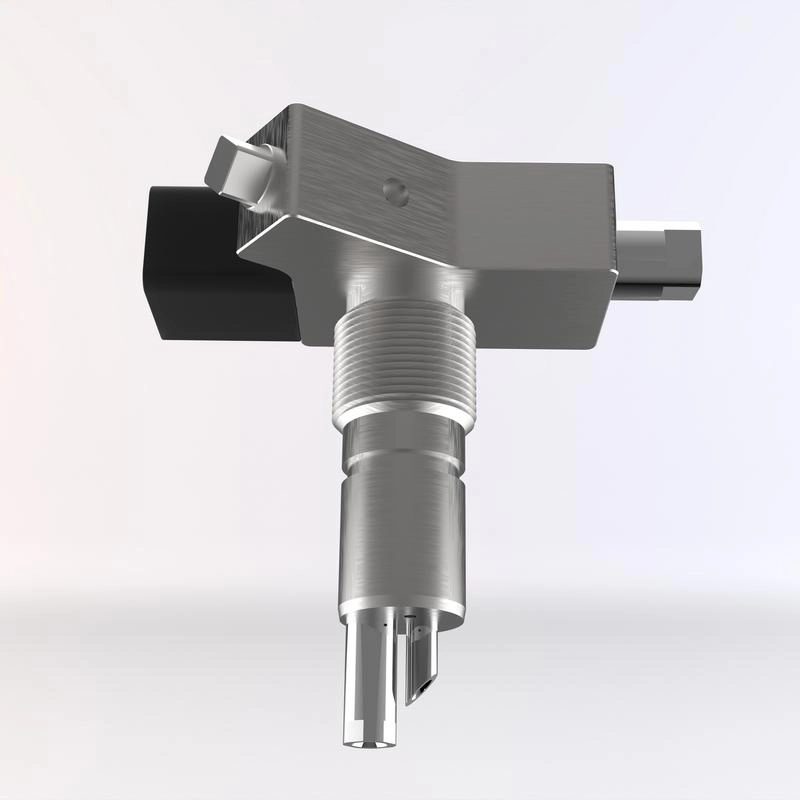

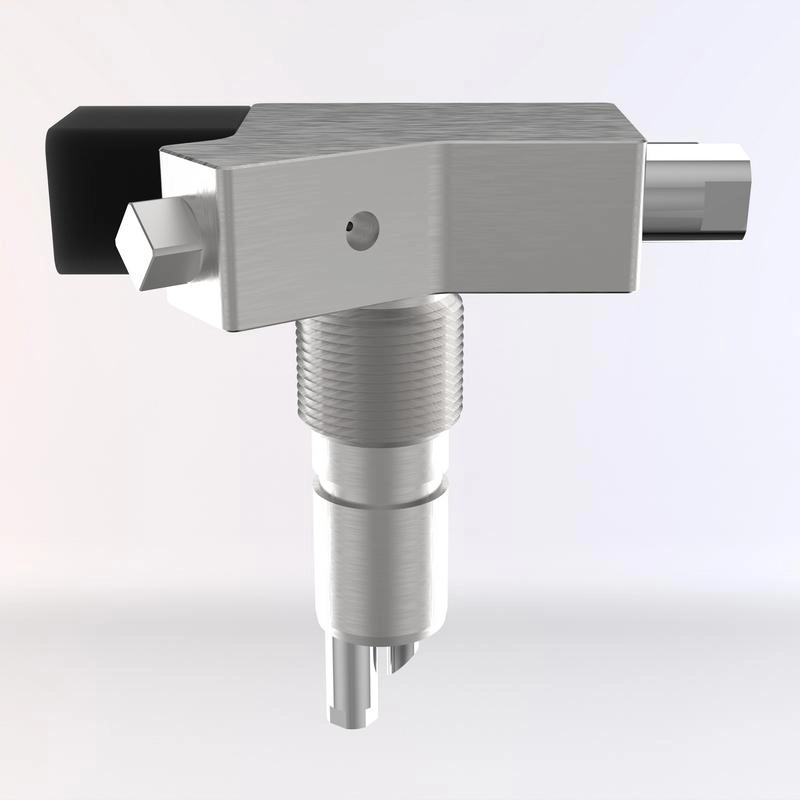

On Tank Valve
Specifications
| Working pressure | 700 bar |
|---|---|
| Maximum working pressure | 875 bar |
| Operating temperature | -40 to 85℃ |
| Body material | Aluminum |
| TPRD trigger temperature | 110℃ |
| Tank interface | 1 ½”-12 UNF (Customized) |
| Inlet/Outlet interface | 9/16”-18 UNF (Customized) |
| Filter | 10μm |
| Solenoid valve | 12V or 24V DC |
| Option functions | Temperature sensor Pressure sensor |
| Certifications | UN R134 (Expected to be completed in 2026Q1) |
| Others | 2026Q3 Mass production |
Product Traceability
Tracing the Source, Upholding Quality — All for Giving You the Best
Each gas generator is labeled with a one-dimensional barcode to enable easy traceability of its origin, ensuring both quality and management efficiency.
