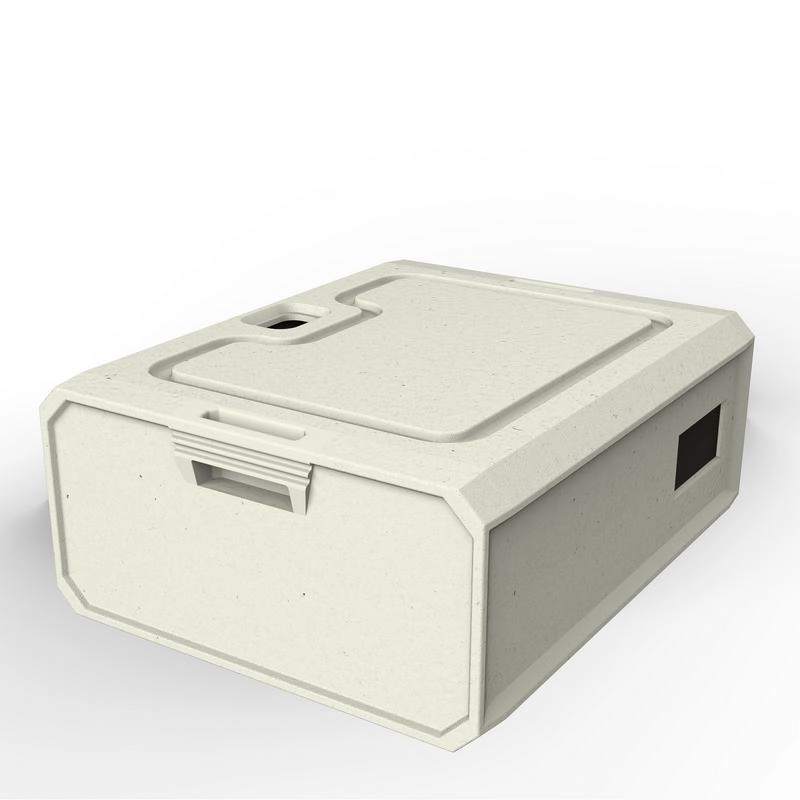

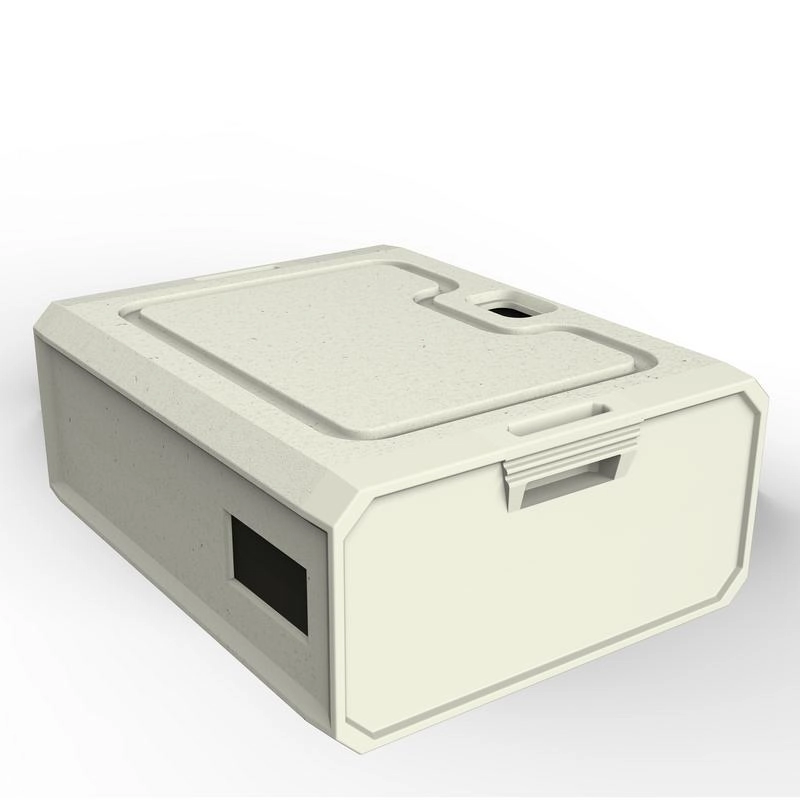

Hydrogen Power Generator



    Hydrogen Power Generator

    • The portable hydrogen power generator has the characteristics of small size, lightweight, low noise, and no exhaust emissions.
    • It is a power supply for outdoor operations and also can be used as a temporary power supply indoors.
    • The supply time can be greatly extended by replacing the gas bundle.

    Fuel Cell - Specifications

    Max Power Output1000W(Fuel Cell 600W, Li-battery 400W)
    Output Voltage24V(DC)
    Hydrogen Conversion rate≥50%
    Hydrogen Purity≥99.999%VOL(COM＜1PPM)
    Working Temperature-20℃~50℃
    Working Humidity10%~95%RH
    Storage Temperature-30℃~70℃
    Weight7.5kg
    DimensionsL336*W240*H325mm
    Type of fuel cellProton Exchange Membrane Fuel Cell (PEMFC)
    CertificationsCE
    Fuel Consumption5.5L/min

    Storage Bundle - Specifications

    MaterialAluminum / Carbon fiber composite

    Working pressure150bar / 350 bar
    Max Storage Pressure250bar / 525 bar
    Cylinder Volume1L
    Number of Cylinders7pcs (Customized)
    DimensionsL336*W240*H325mm
    CertificationsPED 2014/68EU
    (Depending on geographical location and customer specifications.)
    Input & Output InterfaceCustomized
    Back to list
    Next
    Product Traceability
    Tracing the Source, Upholding Quality — All for Giving You the Best

    Each gas generator is labeled with a one-dimensional barcode to enable easy traceability of its origin, ensuring both quality and management efficiency.
